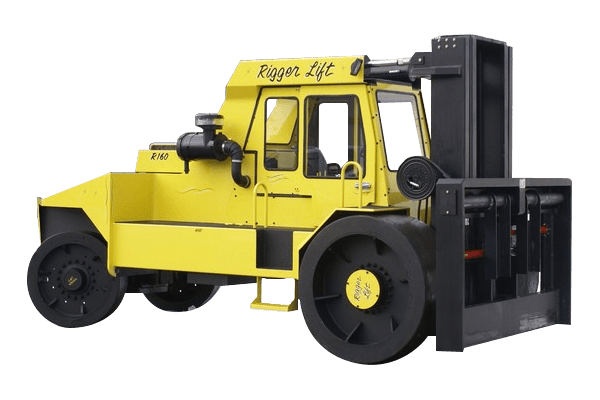

Rigger Lift
Moving big machinery and other heavy items requires high capacity forklift trucks and booms that have the quality and precision built into the design to handle their work loads with ease. Our high capacity forklift trucks are far superior to any other rigger truck on the market today.
Features
Basic Dimensions
189” Overall Extended Height
227” Overall Length - Face of Carriage to Counterweights
101” Overall Width
120” of Maximum Lift
150” Wheelbase
Weights
Truck Weight without Forks
Chassis (without Forks): 45,320 lbs.
Truck Weight with Forks
Chassis (with Forks): 49,210 lbs.
Counterweights (5 Slabs @ 8,500 lbs): 42,500 lbs.
TOTAL WEIGHT (approx.): 91,710 lbs.
